N68 Porosity Holiday Detector


Data download

Related videos

Related cases

N68 Porosity Holiday Detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a professional and practical equipment.

Product Description


1、Low power consumption, small size, light weight。
2、Microelectronic integrated high voltage generator,to overcome the electrostatic;
3、digital display,high-precision;
4、Automatic exchange for High voltage and source voltage;
5、intelligent charging;
6、Adopt imported microswitch, action is sensitive and reliable and with good stability;
7、Power on self test function;
8、Anti static,High voltage Protection;
9、Automatic regulation;
10、Modular structure,Three-proofing design,long service life and reliability。

【Main technical index】

1、Measuring range:A:0.03-3.5mm
2、Output high voltage:A:0.5-15KV
3、Display:digital display
4、High voltage control system:digital governer
5、DC supply:12v
7、Alarm delay:1-2秒
8、High voltage probe:high pressure generator (import)
9、Packing:Aluminum box
10、Main dimension: 165mm×155mm×68mm
11、Weight:1.5kg(Including battery)

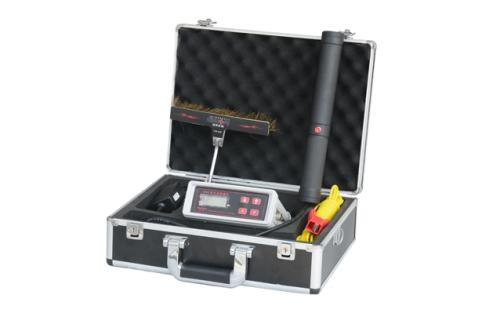

1.Host                                  x1
2.High voltage probe        x1
3.Brush plate                     x1
4.Charge                             x1
5.Long cable                      x1
6.Short connecting line   x1
7.Connecting magnet      x1
8.earth stick                      x1
9.Rubber gloves               x2
10.Manual                         x1


 The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.


Standard configuration: The brush plate
Optional configuration: The fan-shaped brush, The inner circular brush,the exterior circular brush

For more information on this, please consult us!!
