SL-86 Porosity Holiday Detector

1、oil and gas Anticorrosive factory, pipelining company, construction departments and qualitative inspect branch.

2、also use to gas company and water company pipeline inspecting

3、Shipbuilding, petrochemical plant, factory, machinery plant, enamel factory and bridge engineering anticorrosion-layer inspecting.

4、Pipeline transportation company anticorrosion-layer inspecting

1、Microelectronic integrated high voltage generator，to overcome the electrostatic。

2、Full keyboard operation，Improve performance；

3、pinhole automatic counting；

4、High voltage output can Continuous adjustment，auto-save the high voltage value

5、display the The actual test voltage, Ensure the safety of the coating

6、three different the poles to adapt different test

7、when under voltage, automatic shutdown；

8、intelligent charging；

9、Modular structure，Three-proofing design，long service life and reliability。

1、Measuring range：A：0.03-3.5mm

 B：3.5-10.mm

2、Output high voltage：A：0.5-15KV

 B：15-36KV

3、Display：digital display

4、High voltage control system：digital governer

5、DC supply：12v

6、Consumption：＜5w

7、Alarm delay：1-2s

8、High voltage probe：high pressure generator (import)

9、Packing：ABS Engineering plastic box

10、Main dimension： 165mm×155mm×68mm

11、Weight：1.5kg（Including battery）

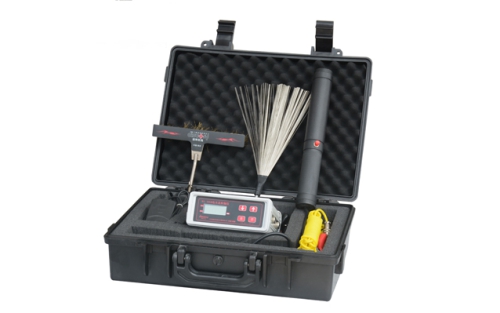

1、Host                              x1

2、High voltage probe    x1

3、Brush plate                  x1

4、Fan-shaped brush      x1

5、Charge                          x1

6、Long cable                    x1

7、Short connecting line x1

8、Connecting magnet    x1

9、earth stick                    x1

10、Rubber gloves           x2

11、Manual                       x1

The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.

Standard configuration: The brush plate

Optional configuration: The fan-shaped brush, The inner circular brush,the exterior circular brush
