GT-100 Thickness Gage

GT-100 is an affordable ultrasonic thickness gage designed to make accurate, measurements from one side on coated metal pipes, tanks, and other equipment. Such as paint, plastic, ceramic, rubber, copper, zinc, aluminum, chromium, copper, etc. Zero calibration and double point calibration can enhance the accuracy of measurements.

Function

Two way of measurements: （CONTINUE）and （SINGLE）

Two way of operating： (DIRECT) and (Appl)

Unit conversion

Error indication

Chinese menu

Backlight

Auto shut off

Transducers                            Optional (see chart 1)

Principle                                  Magnetic, Eddy current

Thickness range                     0-1250um (Different Transducers see chart 1)

Mini Resolution                      0.1μm

Deviations                               Zero calibration (um)：±[3%H+1], double point calibration (um)：±[（1%~3%）H+1]

Condition                                Minimum radius of curvature (mm)：convex 1.5 | Concave 9 、The diameter of the minimum basal area of the matrix (mm)：ф7 、Minimum critical thickness (mm)：0.5

Humiture                                0~40℃ | 20%RH～90%RH

Statistical                                (AVG)、（MAX）、（MIN）、（NO．）、(RSD)

Operate mode                       (DIRECT), (Appl)

Measurement method      （CONTINUE）,（SINGLE）

Storage                                   495 measurement value

Shutdown                              Manual, automatic

Power                                     2 AA alkaline batteries

Size                                         125*67*31mm

Weight                                   340g

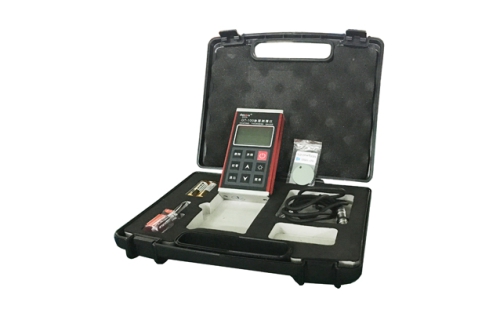

GT-100 thickness gage、N-Transducer F-Transducer、Iron or aluminum matrix、Calibration test blocks、AA alkaline batteries。

GT-100 thickness gage transducers。
