It is a measure of large-capacity transformers, transformers, generators, high-voltage motors, power capacitors, power cables, surge arresters and other insulation resistance of the ideal test equipment.

Product Description

一、Overview

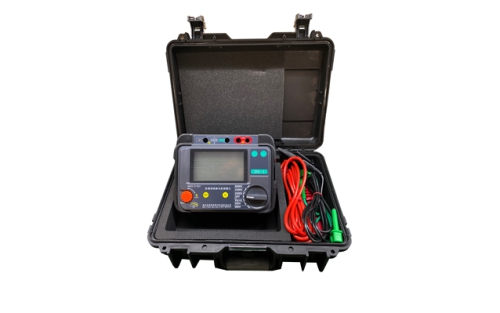

The DS-1 insulation resistance tester offers digital insulation testing up to 10 kV(250V、500V、1000V、2500V、5000V、10000V）, perfected a blend digital analog pointer and digital segment code display，Large capacity and strong anti-jamming, simplicity of operator, Making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables.

二、Product Index

1、Features

1.1、Multiple voltage output options MS-2000(250V/500V/2500V/5000V), Resistance range 0～400GΩ.

1.2、Two ways display resistance value. The pointer can show resistance range, digital display can show the result.

1.3、Using embedded industry microcontroller and real-time operating system. High level automation、anti-jamming ability, Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup.

1.4、Easy operation system，anti-power down function, measurements can be stored in up to 19 memory locations.

1.5、When the meter generates high pressure，there has alarm voice and data display.

1.6、Build-in high-voltage discharge circuit, release residual high-voltage, increased user safety.

1.7、Alternating-currentdirect-current

1.8、Portable design

1.9、High voltage short circuit current≥3mA, ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables.

2、Specifications

Chart 1：DS-1 Specifications

Model		DS-1
Output		250V DC	500V DC	1000V DC	2500V DC	5000V DC
accuracy	Temperature	23℃±5℃
	Insulation resistance	250K～5G ±5％	500K～10G ±5％	1M～20G ±5％	2.5M～50G ±5％	5M～100G ±5％
		other：±10％
	Output voltage	2M～10G ±5％	4M～20G ±5％	8M～40G 0～+10％	20M～100GΩ 0～+10％	40M～200G 0～+10％
High voltage short circuit current		≥3mA
Power		AA batteries，External charger
Humiture		—10℃～40℃， 85％
Save Humiture		—20℃～60℃， 90％
Test voltage		2000 circuit voltage 1000V DC between the shell and the maximum MΩ
Pressure resistance		Is applied between the circuit and the housing 3KV / 50Hz sine wave AC voltage withstand one minute
Size		230mm×190mm×90mm (L×W×H)
Weight		3kg

【Accessories】

DS-1 insulation resistance tester *1

cable *1

15V/4A External charger *1

AA batteries *8

Instructions *1
