Ultrasonic Thickness Gauge

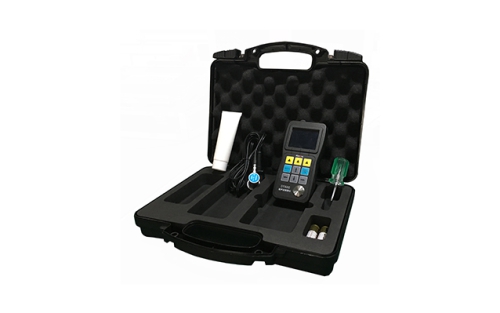

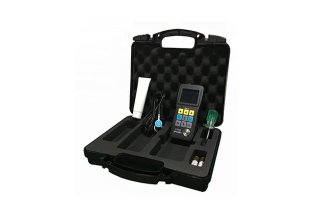

DT600 Ultrasonic Thickness Gaug

Functions

Data download

Related videos

Related cases

It can measure the thickness of metal materials, pipes, pressure vessels, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass, and other special materials; it can also measure materials with coatings such as paint layers on the surface of the workpiece; it is widely used in the production industry, metal processing industry, chemical industry, commercial inspection industry, and other testing fields.

Product Description

【Application Scope】

It can measure the thickness of metal materials, pipes, pressure vessels, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass, and other special materials; it can also measure materials with coatings such as paint layers on the surface of the workpiece; it is widely used in the production industry, metal processing industry, chemical industry, commercial inspection industry, and other testing fields.

【Main Functions】

1. Simple and easy to operate parameter configuration interface

2. Adjustable real-time A-scan, adjustable gain, gate, fade, range, panning, and other parameters

3.Real-time B-scan function, displaying the profile of the workpiece, for observing the bottom profile of the measured workpiece

4. Numerical view, with large numbers to display the thickness value

5.Thickness alarm: Thickness limit can be set, and the measurement value outside the limit is automatically alarmed

6.Most value mode: capture the maximum and minimum values in the measurement process

7.Difference mode: obtain the difference between the current thickness measurement value and the nominal thickness and the percentage of the difference, and the nominal thickness

8.Support two thickness units of millimeter and inch

9. User-selectable measurement resolution X.XX and X.X in the metric system, X.XXX and X.XX in the imperial system

10.User-selectable waveform style: profile line or fill

11.User-selectable rectification modes: RF, inverted RF, full-wave full wave, negative half wave, positive half-wave half wave

12.Multi-language interface selectable

13.Standby time: ultra-long standby, up to 35 hours

14. Allowing inspection and through coating.


【Technical parameters】

Display

2.4QVGA(320x240)} color OLED screen, contrast ratio 10000:1

Working Principle

Ultrasonic pulse/echo method using double crystal probe

Standard mode measurement range

0.5 to 508mm (0.025 to 20.00 inches)

Coating mode measuring range

3-45mm Depends on the probe used, material, surface condition, and temperature

Measurement resolution

0.01 or O.1mm (0.001 or 0.0lin)

Measurement error

+0.05 (under 10mm), ±(0.5%H+O.01) (over 10mm)

Unit

Millimeter or inch

Display mode

A-scan mode, B-scan mode, thickness value mode, min/max capture mode, difference/scaling rate mode

V-path correction

Automatic V-path correction,Compensation nonlinearity.

Measurement update rate

4HZ, 8HZ, 16HZ per second optional

Material Speed of sound Range

500-9999m/s, 0.0179-0.3937in/us

Working Language

Chinese / English / French / German / Japanese (optional)

Alarm setting

Maximum/minimum value alarm, dynamic change of thickness reading color when the alarm

Power supply

Two 1.5V AA batteries

Operation time

Two AA batteries, use time more than 35 hours

Instrument shutdown

Optional automatic shutdown after 5, 10, 20 minutes of no operation, or manual shutdown only

Operating temperature

-10 to +50℃

Dimension

153mm×76mm×37mm (H×W×D)

Weight

With battery 280g



【Optional Probes】

Model

PT-04

PT-06

PT-08

PT-12

ZT-12

TC510

GT-12

Type

Micro Probes

Small Diameter Probes

General probe

General probe

 Cast Iron Probes

Probes for penetrating coatings

High-Temperature Probes

For more information on this, please consult us!!
