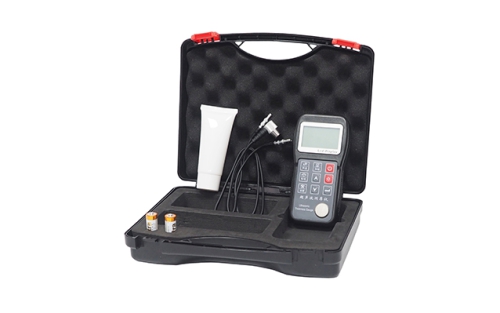

It can measure the thickness of metal materials, pipes, pressure vessels, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass, and other special materials; it can also measure materials with coatings such as paint layers on the surface of the workpiece; it is widely used in the production industry, metal processing industry, chemical industry, commercial inspection industry, and other testing fields.
Product Description【Application Scope】
It can measure the thickness of metal materials, pipes, pressure vessels, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass, and other special materials; it can also measure materials with coatings such as paint layers on the surface of the workpiece; it is widely used in the production industry, metal processing industry, chemical industry, commercial inspection industry, and other testing fields.
【Measurement error】
Measurement resolution 0.01 | Measurement resolution 0.1 | remark | |
10.0mm and lower | ±0.05mm | ±0.1mm | H：Nominal value of matrix |
| 10mm-100mm | ±(0.5%H+0.05)mm | ||
| 100mm以上 | ±(1%H+0.1)mm | ||
High-Temperature Probes | ±(1%H+0.1)mm | ||
Unit：Millimeter or inch
Power supply: Two 1.5V AA batteries
Communication port：RS232
Size：150mm×74mm×32mm
Weight：238 g
Measurement speed：20times/s
Cycles Display：2times/s
data storage：500 groups data；
【Main Functions】
1) Automatic correction（4mm）
2) Frequency selectable（2M ;5M;7M）
3) Two-point calibration function
4) Coupling status indication
5) Battery indicator
6) Automatic shut-off
7) Background data processing
8) Printing supported
【Optional Probes】
Model | characteristic | frequency (MHZ) | Minimum diameter | Range | Temperature |
2PØ12 (ZT-12) Penetration probe | coarse-grain | 2 | 20mm | 3.0mm～300.0mm（steel，cast iron） | -10～60℃ |
5PØ10 (CT-10) General probe | 5 | Ø20×3mm | 1.2mm～300.0mm（steel） | -10～60℃ | |
5PØ10/90 General probe | |||||
7PØ6 (XT-6) Small Diameter Probes | Small surface | 7 | Ø15×2mm | 0.75mm～80.0mm（steel） | -10～60℃ |
ZW5PØ14 High-Temperature Probes | High temperature resistance | 5 | 30mm | 3.0mm～200.0mm（steel） | 350℃ and lower |
TSTU32 Penetration probe | Penetration | 2 | 22mm | 5.0mm～40.0mm（cast iron） | -10～60℃ |
