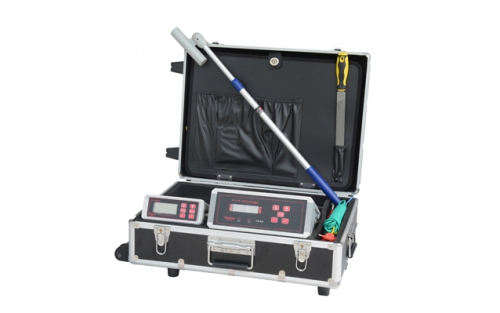

N6-D Undergroud pipeline locator

1、Adopt imported switch, intelligent charging

2、Instrument voltage、output current signal can automatically convert。

3、Automatic exchange for DC power and AC power supply

4、High anti interference circuit。

5、digital display，high-precision；

6、Automatic regulation。

7、Modular structure，Three-proofing design，long service life and reliability。

（一）Transmitter technology index：

1．output power：0~25W automatic control

2．emissive frequency：1K±0.1HZ

3．impedance matching：0~500Ω，automatic matching

4．Range：0.03~5km，

5．Power supply：12V Nickel hydrogen battery

6．working temperature：-10℃~+50℃

7．Control system：Analog signal control

8．regulatory system：Digital keyboard control

9．Weight：2.8kg（Excluding battery）

10．Size（mm）：105×267×220

（二）Detector technology index：

1．sensitivity：-65db

2．position deviation：≤10cm

3．depth：≤5m

4．Power supply：9.6V Nickel hydrogen battery

5．working temperature：-10℃~+50℃

6．Display;：digital display

7．Weight：1.1 kg

8． Size（mm）：165×155×68

 explore pole、battery、outlet line、ground wire、ground rod、rasp、magnet、220Vpower line、fuse 2A、charger。

 Detecting the direction and depth of buried principles and methods: send a specific high-frequency modulation signal to determine the location of underground pipes underground pipeline, the direction and depth of the magnetic field detecting underground pipes.
